RF Desktop Shield Box Manufacturer in India - Compact RF Shielded Enclosure for WLAN, WiFi & Bluetooth Device Testing
Precise RF Isolation. Right on Your Workbench.
India’s leading RF Desktop Shield Box manufacturer, compact, lightweight, and built for accurate WLAN, WiFi, Bluetooth, 4G and 5G device testing. ISO 9001:2015 certified. Trusted by 200+ companies across India and 15+ countries.
✔ Up to 125 dB Isolation @ 1 GHz
✔ Desktop & Rack Shelf Mountable
✔ Top & Front Load Door Options
✔ Ships Pan-India & Globally
Engineered for Your Lab. Optimized for Your Bench.
Every RF Isolation desktop shield box delivers reliable RF shielding performance in a compact, bench-friendly form factor, built for engineers who need clean, repeatable test results without taking up half their workbench.
| Feature | What It Means for You |
|---|---|
| Up to 125 dB Isolation @ 1 GHz | Industry-leading shielding effectiveness in a desktop enclosure. Eliminates ambient WiFi, Bluetooth, and cellular signals so your test results reflect the device, not the environment. |
| Compact Desktop Form Factor | Fits comfortably on any standard workbench or sliding rack shelf without disrupting your existing lab layout. Lightweight aluminium construction makes it easy to reposition between stations. |
| Top-Load & Front-Load Door Options | Choose the access style that fits your workflow. Top-load for fast, repetitive DUT placement or front-load for devices with cables and connections that need more access space. |
| Rugged Welded Aluminium Body | CNC-bent and laser-welded aluminium construction provides a durable, RF-tight enclosure that handles daily lab use without seal degradation or structural wear. |
| Copper Beryllium Door Contacts | Military-grade copper beryllium finger contacts maintain consistent shielding effectiveness across tens of thousands of open/close cycles. No performance drop after months of daily use. |
| Multi-Layer RF Absorber Lining | Internal multi-layer absorber suppresses signal reflections inside the enclosure, ensuring accurate radiated measurements without multipath interference. |
| Replaceable Rear I/O Modules | Field-replaceable rear panel lets you add or swap SMA connectors, USB, power, and DC filter ports as your test requirements change. No need to return the unit. |
| Desktop & Rack Shelf Mounting | Use it standalone on your bench or mount it on a standard 19-inch rack shelf for a cleaner, integrated lab setup. Both options supported across all models. |
Why RF & Wireless Engineers Choose RF Isolation
Verified Isolation, Every Unit, Before Dispatch
Every RF desktop shield box leaves our Ahmedabad facility with a shielding effectiveness test certificate. You get measured, verified isolation data, not just a spec sheet claim.
Custom-Built to Your Exact Requirements
Need a specific internal size, a custom I/O panel, or a non-standard port configuration? We manufacture fully custom desktop shield boxes to your DUT dimensions and test system requirements. No compromise, no workaround.
ISO 9001:2015 Certified Manufacturing
Our production facility follows ISO 9001:2015 certified quality processes from raw material to finished unit. Consistent quality, every order, every time.
Lightweight & Lab-Ready Out of the Box
Our desktop shield boxes are designed to be immediately deployable. Compact enough for crowded benches, light enough to carry between stations, and simple enough to set up in minutes.
Trusted by India's Leading Technology Companies
Nokia, Reliance Jio, Amazon India, C-DOT, Dixon Technologies. Over 200 companies trust RF Isolation for their RF shielding and wireless device testing needs.
Global Clients
0
+
Standard Models
0
+
Max Isolation @ 1 GHz
0
db
Countries Served
0
+
Our Clients
What Is an RF Desktop Shield Box?
An RF Desktop Shield Box, also called a benchtop RF shielded enclosure or desktop RF test box, is a compact, portable Faraday cage designed for testing small to medium wireless devices on a workbench or rack shelf. It isolates the device under test (DUT) from ambient electromagnetic interference (EMI) and radio frequency interference (RFI), creating a clean RF environment for accurate, repeatable wireless testing.
Unlike larger standalone boxes or rack-mount enclosures, the RF desktop shield box is purpose-built for individual engineer workstations. It is lightweight enough to move, compact enough for tight bench space, and fast to load and unload for high-iteration R&D or small-batch QA to work.
RF Isolation manufactures 7 desktop shield box models from our ISO 9001:2015 certified facility in Ahmedabad, each customizable to your device size, port requirements, and mounting preference.
Industries We Serve
WiFi & WLAN Device Manufacturers
Bluetooth & BLE Module Developers
4G & 5G Device R&D Teams
IoT Device Pre-Compliance Testing Labs
Consumer Electronics QA Teams
University & Research Institutions
Mobile & Smartphone Testing Facilities
Which RF Desktop Shield Box Is Right for You?
With 7 models available, the right choice depends on your device size, access preference, and mounting style. Use this guide to find your match or contact us for a free recommendation.
Where RF Desktop Shield Boxes Are Used
WiFi & WLAN Device Testing (802.11a/b/g/n/ac/ax)
WiFi engineers use desktop shield boxes to run throughput, sensitivity, and coexistence tests in an interference-free environment. Our enclosures support all 802.11 protocols from 2.4 GHz 802.11b to WiFi 6E at 6 GHz.
Bluetooth & BLE Module Testing
Bluetooth 5.x, BLE, and Zigbee devices require clean RF conditions for sensitivity and range testing. Our compact desktop models provide the isolation levels required for BQB and FCC pre-compliance work.
4G & 5G Device Testing
For 4G LTE and 5G Sub-6 GHz module validation, our desktop shield boxes provide greater than or equal to 90 dB isolation at 6 GHz, sufficient for OTA sensitivity testing and protocol compliance verification before formal lab submission.
RFID & NFC Device Testing
RFID and NFC manufacturers use compact desktop enclosures to simulate controlled read-range environments and test antenna sensitivity, isolated from ambient interference.
IoT Device Pre-Compliance Testing
IoT development teams use RF desktop shield boxes throughout the product development cycle to catch RF issues early, before formal EMC and wireless certification. Testing early saves weeks of lab time and significant certification cost.
QA & End-of-Line Production Testing
For small-batch production lines or QA stations, the desktop shield box provides a cost-effective, space-efficient RF shielded test environment with consistent, repeatable isolation every time.
Still unsure?
Talk to our shielding specialists, free of charge
Choose Your Configuration
Door Type
Manual Top-Load
R&D and low-volume testing. Fast DUT placement, simple one-hand open/close.
Manual Front-Load
Devices with multiple cables. Wider front access, easier device handling.
Rack Shelf Mount
Lab bench space optimization. Mounts on a standard 19-inch rack shelf.
Rear I/O Panel Options
The rear I/O panel on all models is field-replaceable. Configure it with the ports your test system requires:
- SMA RF Connectors
- N-Type RF Connectors
- RJ-45 Filtered Ethernet Port
- USB 2.0 / USB 3.0 Filtered Ports
- DC Power Filtered Port
- AC Power Filtered Port
- DB9 / DB25 Data Filtered Ports
- Custom combination panels available on request
- DC Power Filtered Port
- AC Power Filtered Port
- DB9 / DB25 Data Filtered Ports
- Custom combination panels available on request
Related Products
Get Your RF Desktop Shield Box Today
Accurate RF testing starts with the right enclosure. Talk to our shielding specialists, free of charge.
- Response within 24 hours
- Free prototype trial available
- Ships pan-India & to 15+ countries
- Free expert consultation
Frequently Asked Questions
What is an RF Desktop Shield Box used for?
It is used to create a shielded, interference-free environment for testing wireless devices including WiFi, Bluetooth, 4G, 5G, RFID, and NFC on a lab workbench. It blocks ambient RF signals, so your test results are accurate and repeatable.
What is the difference between an RF Desktop Shield Box and an RF Standalone Shield Box?
A desktop box is compact and designed for a single engineer workstation, ideal for small to medium devices and R&D use. A standalone box is larger, available in more sizes, and suited for bigger devices or free-standing setups. If bench space is limited, the desktop box is the right choice.
Which model should I choose for WiFi 6 testing?

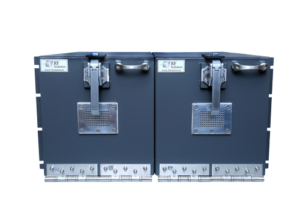

For WiFi 6 and WiFi 6E testing up to 6 GHz, we recommend the RI 5630-D or RI 5639. Both deliver 125 dB at 1 GHz and 90 dB at 6 GHz, covering all 802.11ax frequency bands including the 6 GHz band.
Can the rear I/O panel be customized?
Yes. The rear I/O panel on every model is field-replaceable. Configure it with SMA, USB 2.0/3.0, RJ-45, DC power, AC power, or DB9/DB25 ports, or request a fully custom panel for your test system.
What mounting options are available?
All models work as standalone benchtop units or mount on a standard 19-inch rack shelf. Rack shelf mounting integrates the shield box cleanly into multi-instrument lab setups.
What is the delivery timeline?
Standard models ship within 2 to 3 weeks across India. Custom configurations take 3 to 5 weeks. International shipping is available to USA, UK, Turkey, Australia, Italy, Israel, and more.
Do you offer a free trial?
Yes. We offer a free prototype trial so you can evaluate isolation performance in your own test environment before purchasing. Contact our team on WhatsApp or fill the quote form to apply.
Is the desktop shield box suitable for 5G testing?
Yes. Our desktop boxes deliver 90 dB isolation at 6 GHz, meeting the requirements for 5G Sub-6 GHz OTA sensitivity and protocol testing. For higher isolation needs, contact us for a custom configuration.
Can I get a custom size?
Yes, fully. Custom-manufacture desktop shield boxes to any internal dimension. Share your device dimensions, frequency range, and port requirements, and we will quote within 24 hours.
What maintenance does it require?
Inspect the copper beryllium door contact fingers every 6 months. Clean the door gasket seal regularly. Spare parts and maintenance guidance are available from our team post-purchase.
