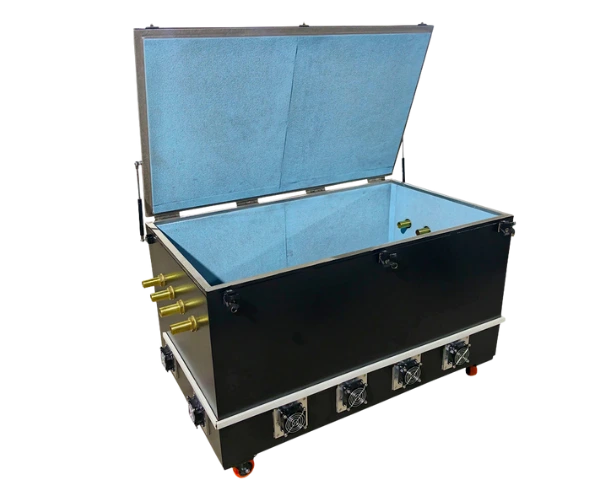

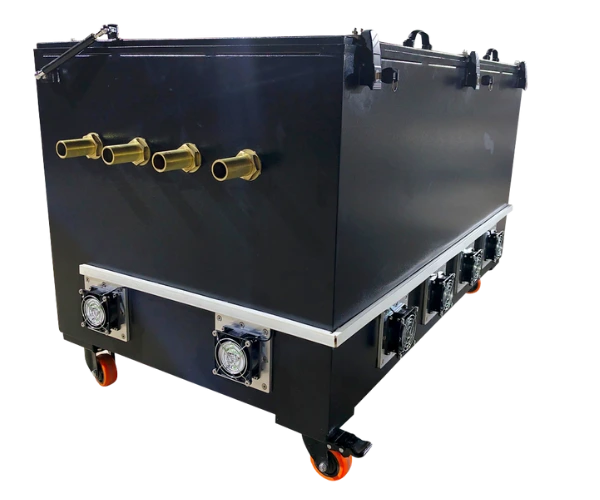

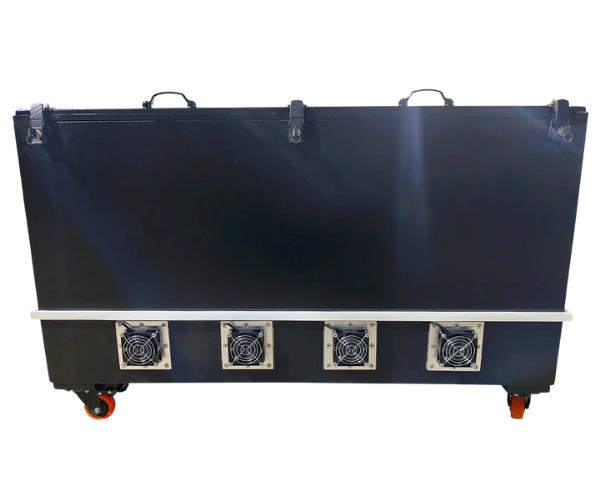

Model Name: RI 1270 Horizontal RF Shield Box

  • Features
  • Technical Specifications
  • Standalone RF Shield box
  • Rugged Aluminum Welded Box
  • Fully Customizable Shielded Enclosure
  • Tight Locking and Gasket System
  • Copper Beryllium fingers are provided for ensuring Shielding
    Effectiveness
  • Honeycomb Ventilation for Cooling
  • 25mm Polyurethane Absorber Fire Retardant as per NRL 8093
Exterior 1200 mm(L) X 700 mm (W) X 600 mm(H)
Interior 1150 mm (L) X 650 mm(W) X 550 mm(H)
Frequency Range 20 MHz to 12 GHz
Isolation >=120dB @ 1GHz
>120dB @ 3GHz
>=80 dB up to 12GHz
M8 Stud Spacer 4 Nos
Wave Guide 8 Nos
80 x 80 mm Honeycomb Air vent with FAN 6 Nos
  • 25mm Flat Polyurethane Absorber
  • Caster wheels
  • TOP side door opening
